Wire Splicers

Connect With A Specialist

Description

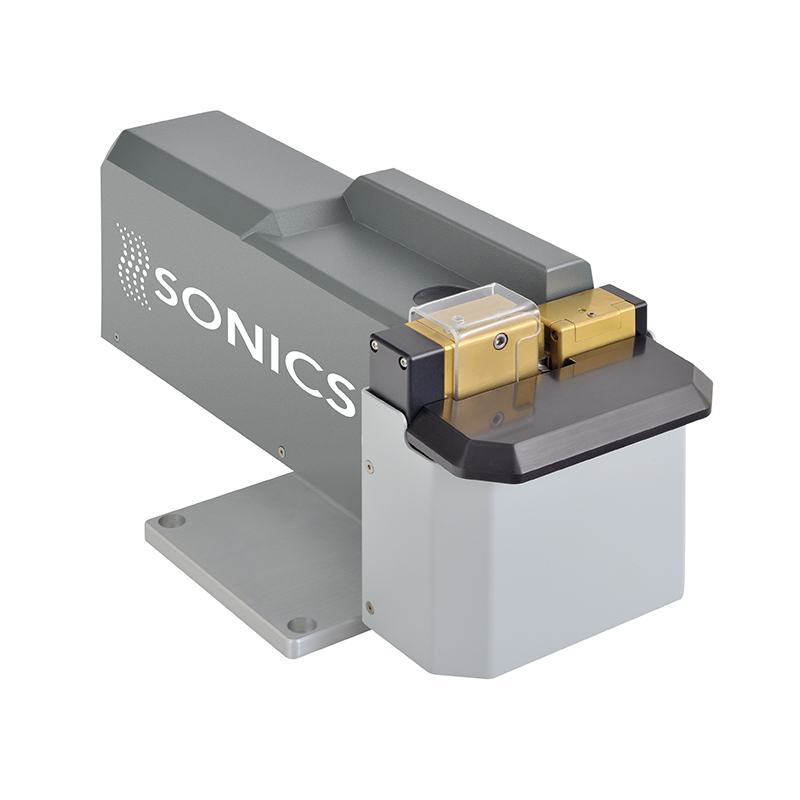

Sonics’ 20 kHz ultrasonic wire splicer produces world class splices from 0.5 to 40 mm2 wire sums. From the SmartControl power supply’s full color touchscreen, the operator can intuitively enter weld parameters, store them in the library and even recall them with via the barcode reading feature. Weld results can be seen as numerical values and on the time based graphs. Data logging to an external PC allows the user to store data for quality analysis. Its easy access ergonomic design, quick tool change and minimal maintenance requirement make it the work horse of the industry. The splicer is available in two power levels and with various tool options.

Features

  • Automatic splice width adjustment from 0.5 to 40 mm
  • Patented self-orienting horn permits simple, precise tool change in under one minute
  • Patented single piece dual nodal mount horn and booster stack
  • Heavy duty linear bearings assure precision motion
  • Bearings are sealed and pre-lubricated for longest life
  • The WSC SmartControl Power Supplies feature a full color touchscreen which the operator can intuitively enter weld paramters with job storage and recall capabilities.
  • Weld results are viewable as numerical values and on time-based graphs
  • Data logging to an external PC for dtata storage for quality analysis

Specifications

Power/Frequency:
  • 2500 watts at 20 kHz
  • 4000 watts at 20 kHz
Input Voltage:
  • 220 VAC, 50/60 Hz

Data Sheets


Ultrasonic Wire Splicing Systems

Download
