Description

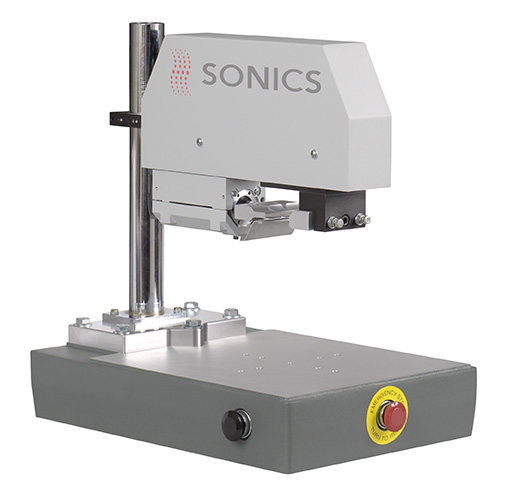

Our Ultrasonic Plastic Tube Sealers provide fast, clean and repeatable sealing of plastic or laminated collapsible squeeze tubes in a single step process. Advanced systems offering an energy-saving, environmentally-friendly, efficient process for sealing tubes across a wide range of thermoplastic materials. Systems are available with integral base for manual operation or power head actuator for automated in-line production systems.

Strength of tube seal not compromised by presence of contaminants like ink, dye, powder, emulsion, etc. Minimal extrusion of excess plastic and/or laminate tube material. Tube materials need not be pre-heated. Cost-saving on-demand energy usage vs. continuous energy. Seal strengths attainable to 100% of the parent material. Instantaneous solidification of bonded material. Optional product coding available (anvil side).

Features

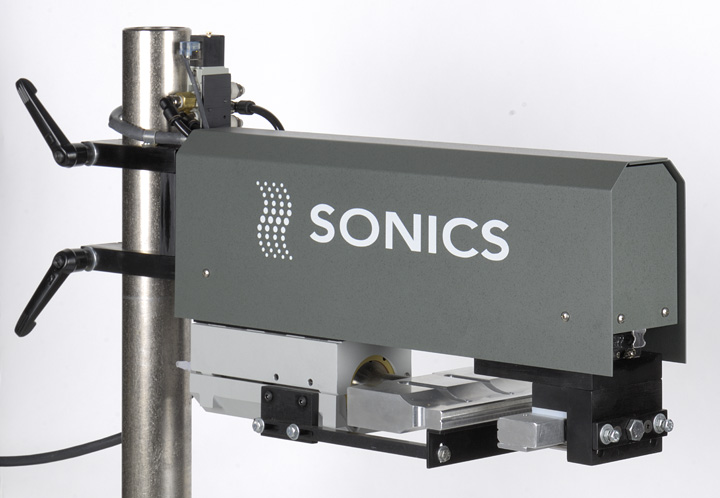

Tube Sealer Head Features:

  • Rack and pinion jaw system
  • Opposing force center position
  • 360 degree adjustable converter/booster/horn

Power Supply Features:

  • Microprocessor-controlled generators with horn/stack frequency display and digital amplitude control.
  • Digital Time (Model GXT) or Constant energy weld mode (Model GXE)

Specifications


Power/Frequency:
  • 800 watts at 40 kHz
  • 1200 watts at 20 kHz
  • 2200 watts at 20 kHz
Input Voltage:
  • 220 VAC, 50/60 Hz
  • 120 VAC, 50/60 Hz (optional for 1200 watt models)

Data Sheets



Ultrasonic Plastic Tube Sealing System
