Description

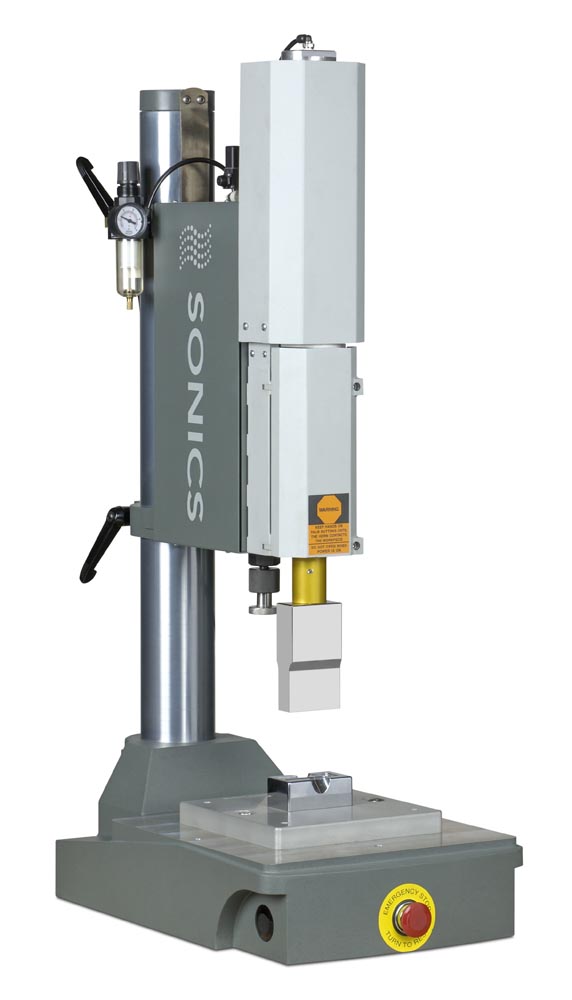

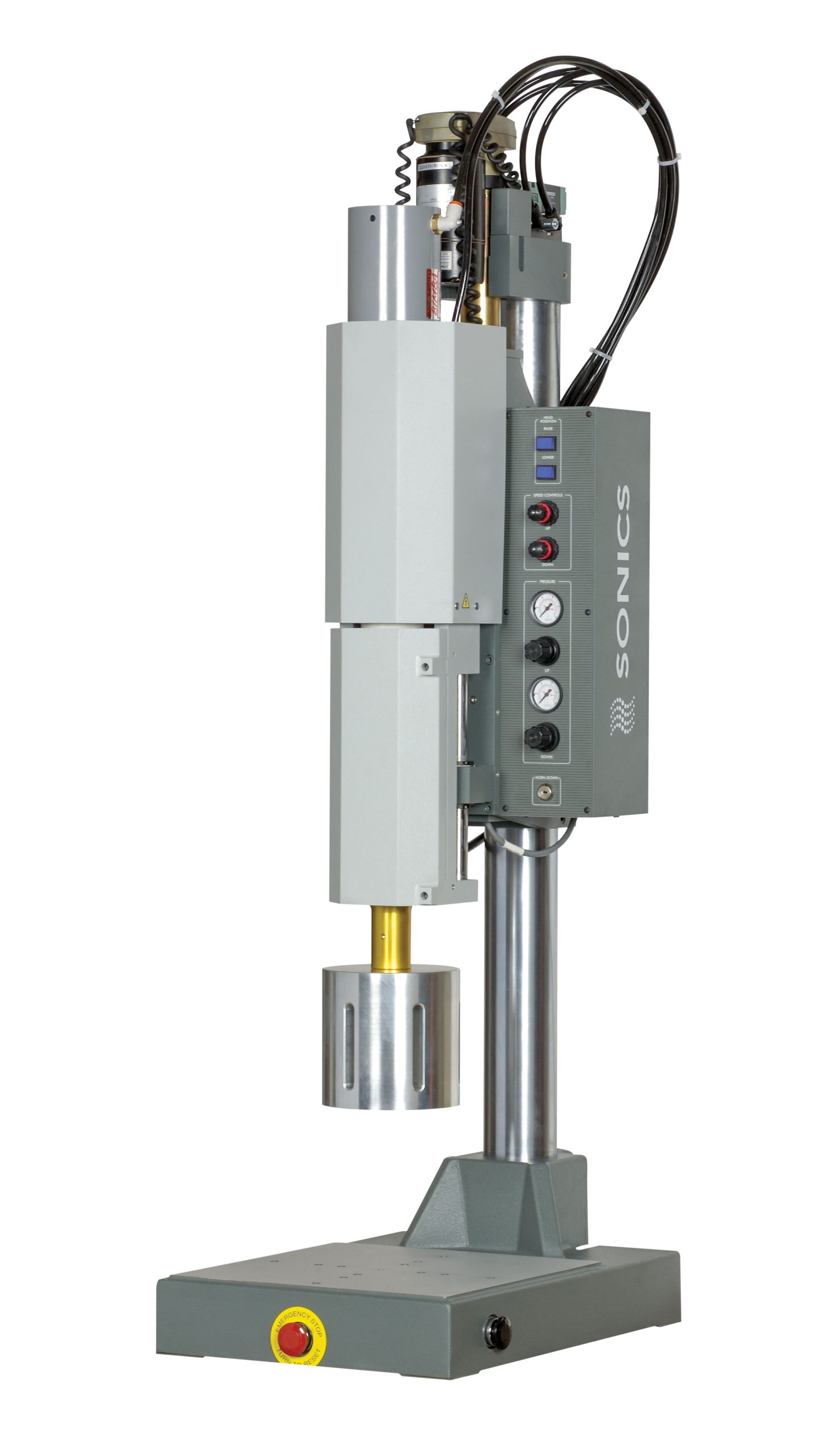

Sonics’ G-Series line of bench top pneumatic welders are comprised of a microprocessor controlled power supply and rigid designed press, and have the capability to weld in Time or Energy. Frequencies include 15, 20, 30 and 40 kHz making them suitable for a wide range of applications.

Features

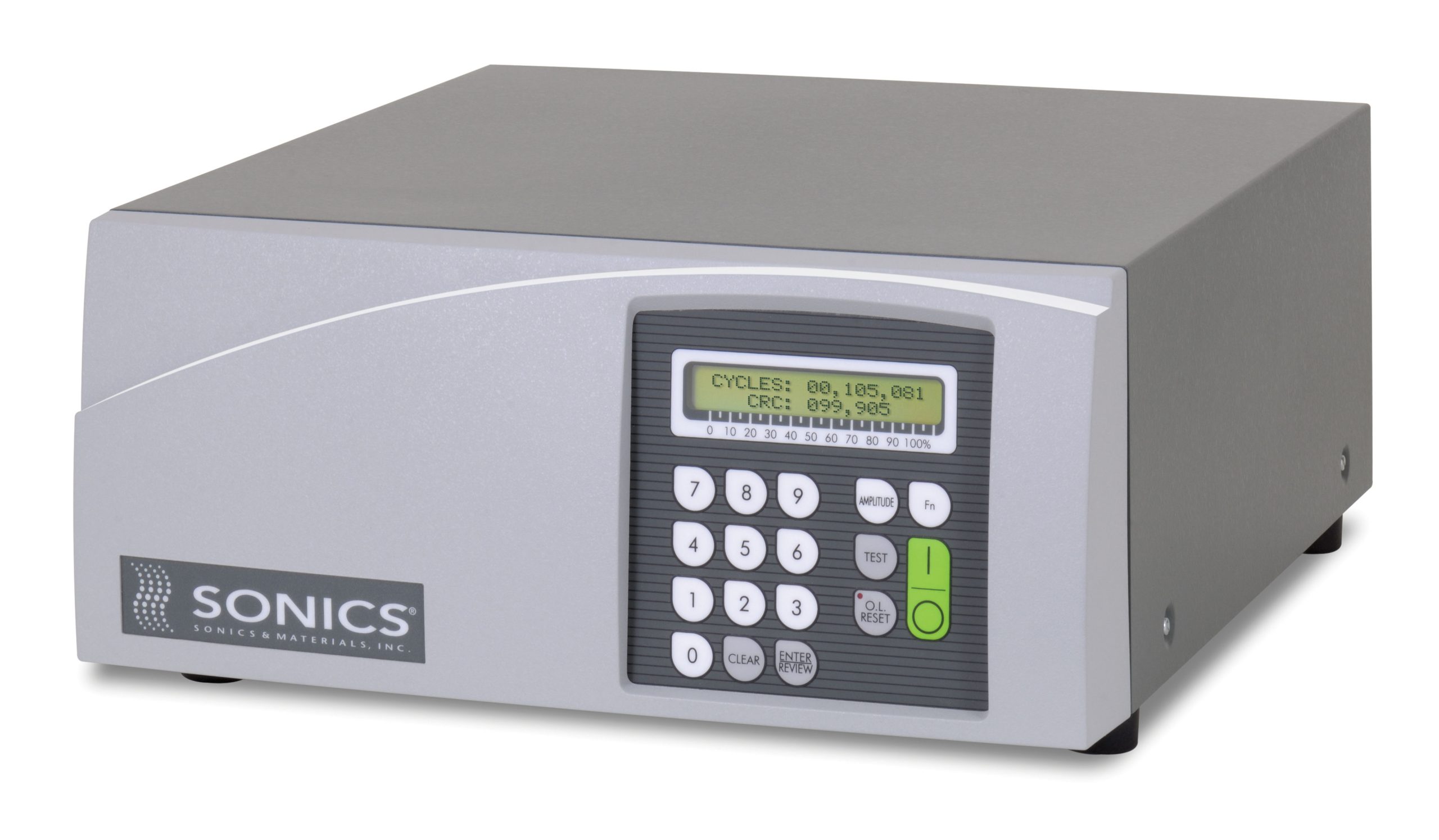

  • Remote power supply with user friendly mid-level digital microprocessor with control for Time and Time/Energy, Amplitude, +/- process monitoring Limits
  • Displays sytem power draw and frequency.
  • Auto-tune for wide range of horn designs.
  • Press features include cast aluminum base with integral mounting hub for rigid column support
  • 360 degrees stack adjustment

Specifications

Power/Frequency:
  • 800 watts at 40 kHz
  • 1200 watts at 20 kHz
  • 1200 watts at 30 kHz
  • 2200 watts at 20 kHz
  • 2500 watts at 15 kHz
  • 3500 watts at 20 kHz
  • 4500 watts at 15 kHz
Input Voltage:
  • 220 VAC, 50/60 Hz
  • 120 VAC, 50/60 Hz (optional for 800 and 1200 watt models)

Data Sheets


Model 1595 15khz

Download

Model 2050-1550 20khz-15khz

Download

Model 2055-1555 20khz-15khz

Download

Model 3050 30Khz

Download

Model 4095 40khz

Download
