Description

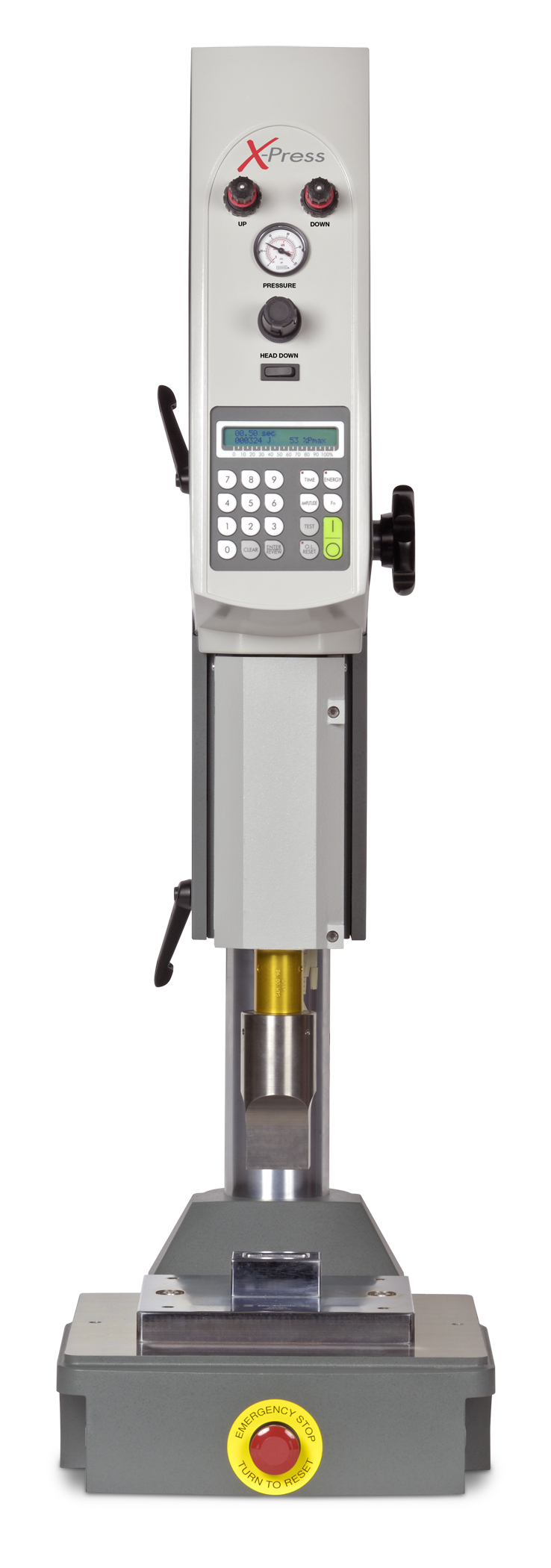

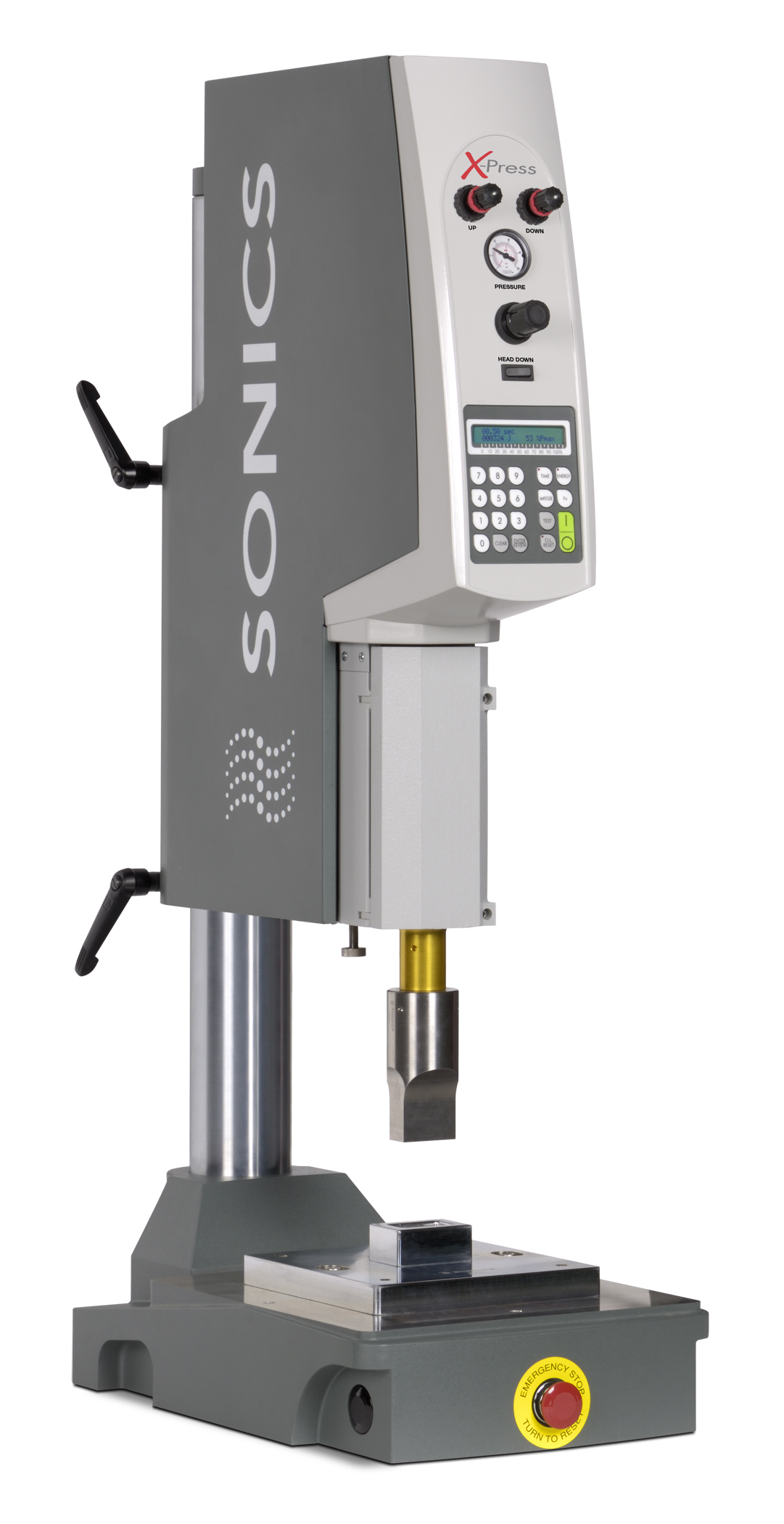

Sonics’ X-Press pneumatic integrated welder is an all-in-one super-rigid ultrasonic press that combines power, versatility and microprocessor control in one convenient unit. Ideal for economical applications.

Features

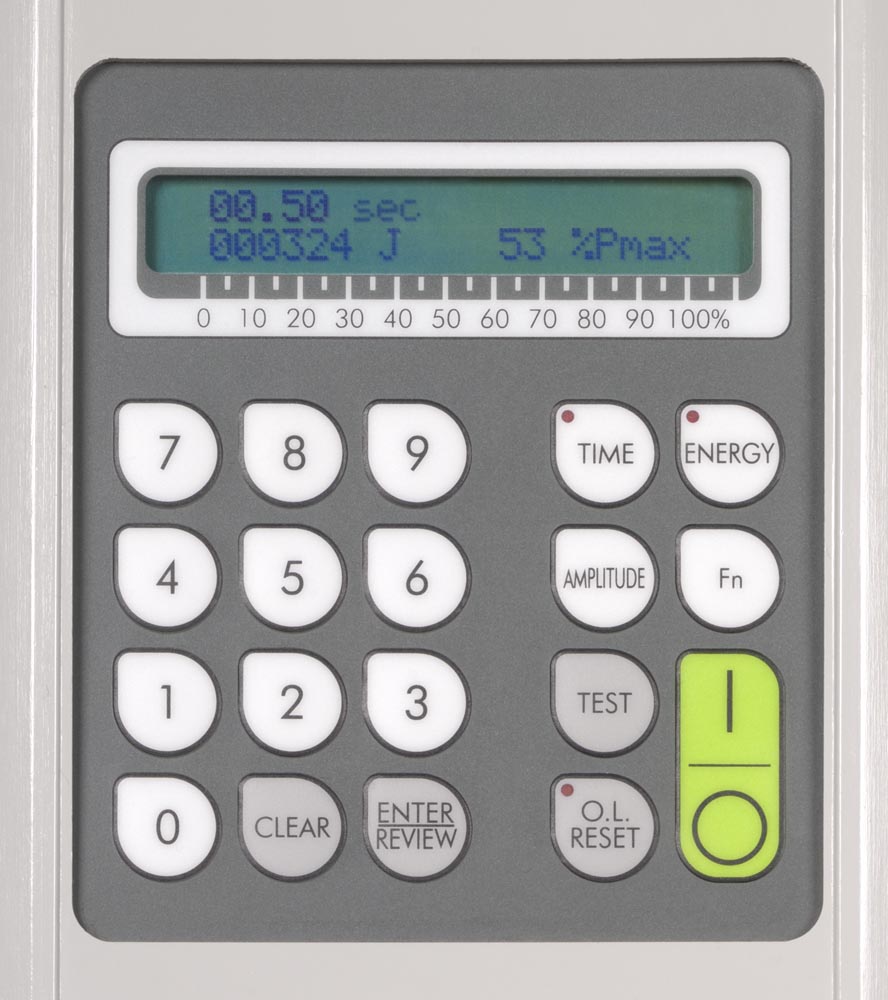

  • Integrated power supply with user friendly digital microprocessor programming for Time and Time/Energy, Amplitude, +/- process monitoring Limits.
  • Auto-tune for wide range of horn designs
  • Display system power draw and frequency,
  • Cast aluminum base with integral mounting hub for rigid column support
  • 360 degrees stack adjustment

Specifications

Power/Frequency:
  • 1200 watts at 20 kHz
  • 2200 watts at 20 kHz
  • 2500 watts at 15 kHz
Input Voltage:
  • 220 VAC, 50/60 Hz
  • 120 VAC, 50/60 Hz (optional for 1200 watt models)
