Description

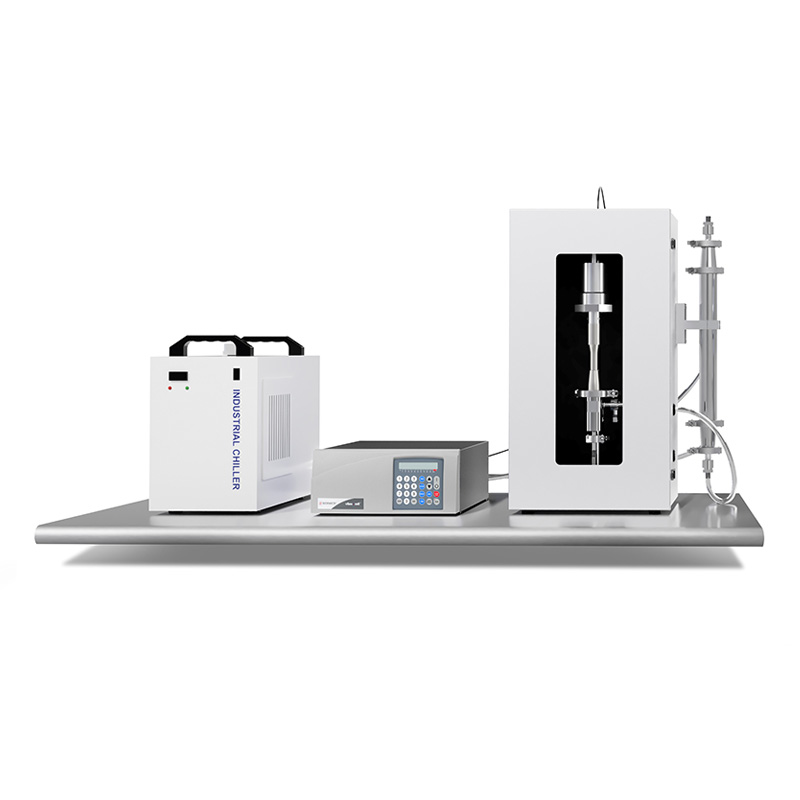

The VCX-2000 Flow Cell Package provides a full setup for flowthrough sonication. VCX-2000FP-220 includes the Ultrasonic Processor, Booster, Flow Cell, Probe, Stand, Sound Enclosure, Chiller & Heat Exchanger.
The High Volume Continuous Flow Cell enables continuous processing of 5L or more. The throughput rate depends on many variables including viscosity and desired degree of processing. The flow cell is recommended for the treatment of low viscosity samples which do not require extended exposure to ultrasonics. For optimum performance, when working on a flow through basis, pre-mixing the sample with a mechanical stirrer is recommended. Multiple units can be used in series to reduce processing time and/or maintain higher flow rates.
The process fluid is pumped into the flow cell through the inlet at the bottom. As the sample passes through the cavitation field at the tip of the flow cell probe, it is processed. The processed liquid exits the unit through an outlet port. The degree of processing can be controlled by adjusting the intensity of sonication as well as flow rate.
The 1.5″ probe (part no. 630-0676) is included with the flow cell. All process connections are sanitary and the unit is easily disassembled for cleaning. All wetted parts are autoclavable.
Use of the sound enclosure (part no. 830-00475) is always advised.
