VCX-1500A-220

$10,500.00

Description

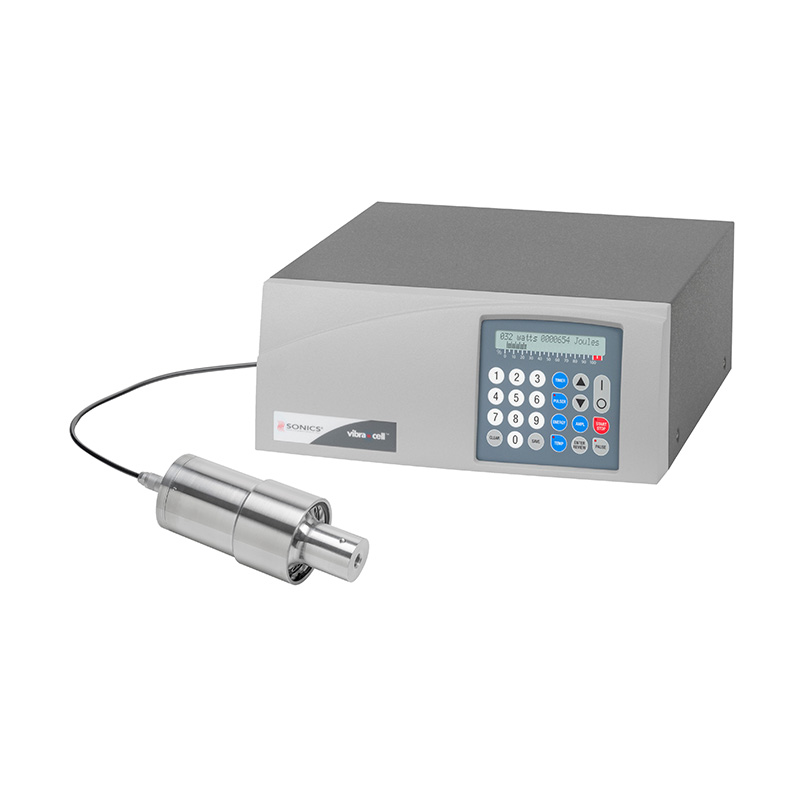

The VCX-1500-220 is a reliable and durable choice for many applications.

Part No. VCX-1500A-220 can be used to order the system without the standard probe and booster. A variety of probe options are available including the flow cell inline processing accessory.

Electrical requirements are 220V, 50/60Hz, single phase, 20A. Air cooling of the converter by compressed air is required to prevent overheating of the ultrasonic processor.

Please Note: The stand is sold separately.

Features

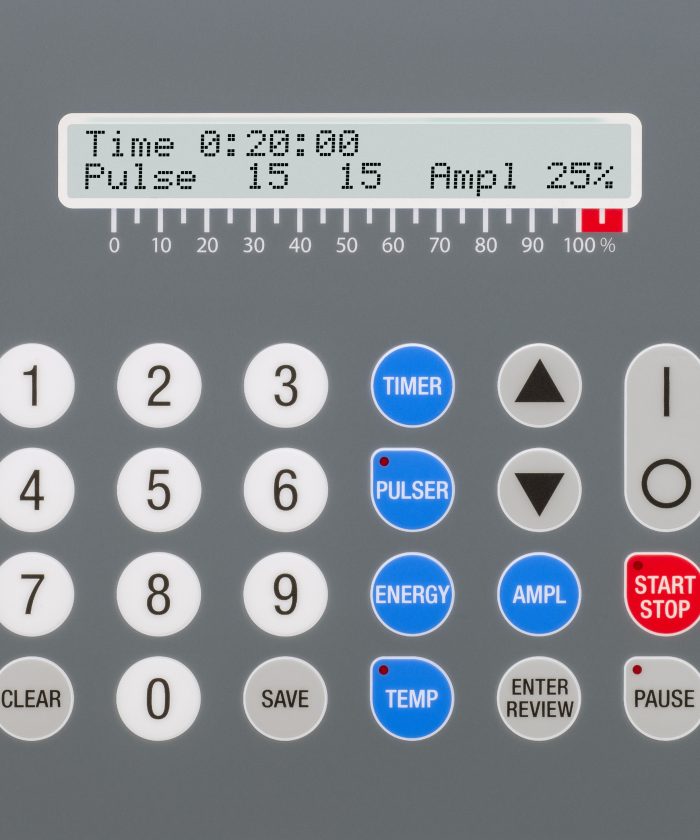

  • Programmable
  • Variable power output
  • 10 hour timer
  • Pulse mode
  • Wattage and Energy display
  • Temperature monitoring
  • Energy setpoint

Specifications


Power Output

  • 1500 watt maximum
  • Frequency 20kHz

Dimensions: H x W x D: 7 x 15 x 18.25″ (178 x 380 x 464mm)

Converter Cable Part #201-0106

  • Length – 10′ (3m)

Ultrasonic Converter Part #CV00294V

  • Diameter – 3″ (76.2mm)
  • Length – 6.25″ (159mm)

Tool Kit: Part #888-00054 spanner wrench (2 included)

Optional:

  • Stand with Clamp – Part #830-00461
  • Temperature Probe – Part #830-00060

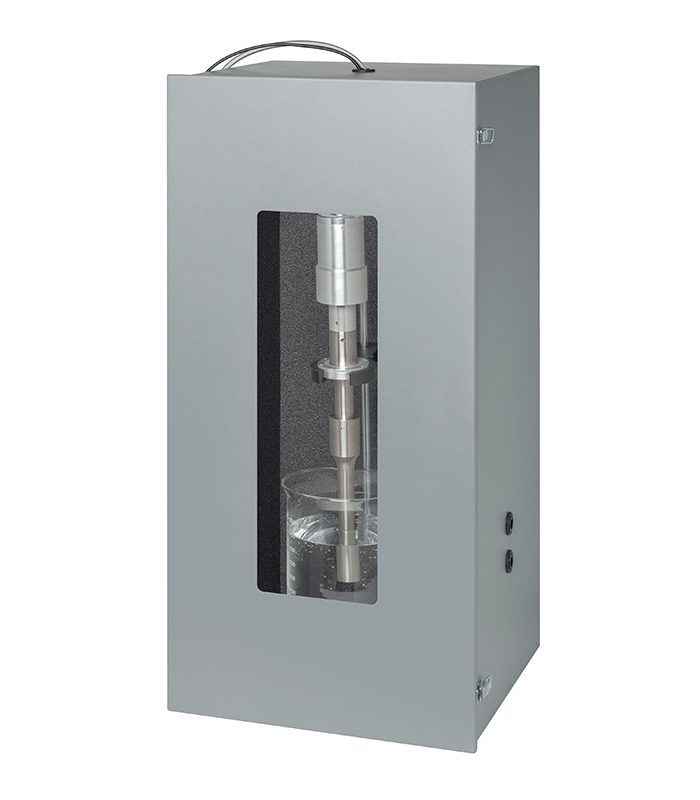

  • Sound Enclosure – Part #830-00474

Data Sheets


VCX-1500


1500-watt Ultrasonic Processor, 220V, with Converter—Probe & Booster not included
