Description

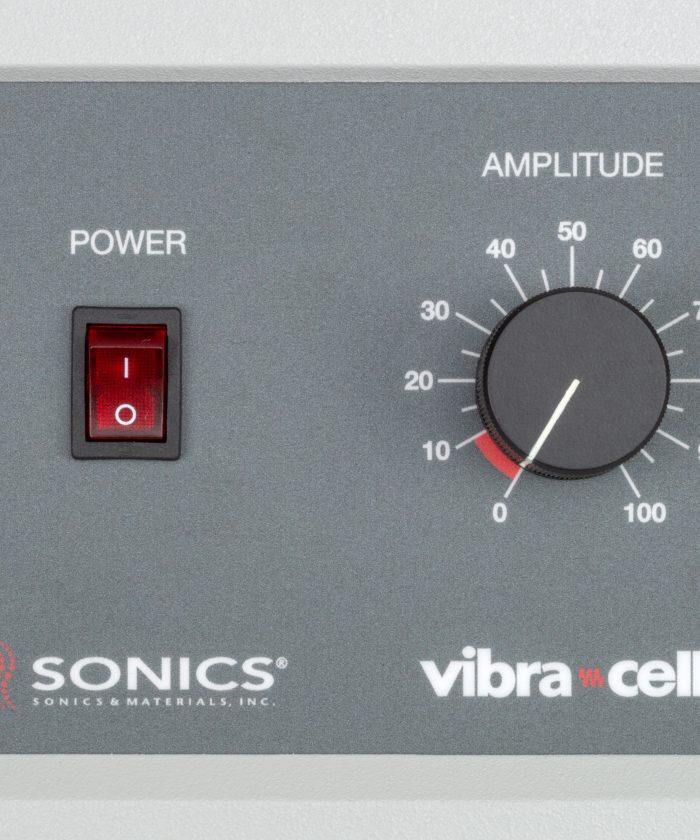

The VC-50 is a small and compact 50-watt ultrasonic processor. The probe can be held by hand and ultrasonic energy is activated by turning the amplitude knob on the front panel.
The 1/8″ probe (0.5 – 15mL volumes) is included with the VC-50-110 and a variety of accessories are available for various applications and sample volumes.
Part No. VC-50A-110 can be used to order the system without the standard probe.
Please Note: The stand is sold separately.
Specifications
Power Output
- 50 watt maximum
- Frequency 20kHz
Dimensions: H x W x D: 8 x 8 x 5″ (203 x 203 x 127mm)
Converter Cable: Permanently attached – Length 5 ft. (1.5m)
Ultrasonic Converter Part #CV18
- Diameter – 1.25″ (32mm)
- Length – 5.75″ (146mm)
Tool Kit Part: #888-00026 open end wrench (2 included)
Standard Probe: Part #630-0422
- Tip Diameter: 1/8″ (3mm)
- Length: 5.4″ (137mm)
- Material: Ti6Al4V titanium alloy
Optional:
- Stand with Clamp – Part #830-00460
- Sound Enclosure – Part #830-00451
